A primer on financial engineering and structured finance

How financial engineers made a fortune creating worthless mortgage-based securities. (23-Jan-2008)
Summary In recent years, young financial engineers have used "structured finance" techniques to create a variety of high-rate, "low-risk" securities, such as collateralized debt obligations (CDOs) or credit default swaps (CDSs). The current global financial crisis is coming about because many of these "low-risk" securities are turning out to be worthless. This article explains how these faulty securities were created, and what went wrong.

Over the months, I've tried to explain how things like CDOs (collateralized debt obligations) and CDSs (credit default swaps) work, but I've never put it all together in one place. I'm going to try to do it here (and hope that I get it right myself).

Contents - This page
Meanings of ratings on securities
Computing present value of a future payment
Computing expected value of an uncertain payment
Combining present value and expected value
How to create a CDO
The Making of a Mortgage CDO
How the "cascade rule" works
Structured Investment Vehicles (SIVs)
Insuring bonds to raise their ratings
Credit Default Swaps (CDSs) and Counterparty Risk
The generational problem

One reason that it's hard to find a complete explanation of structured finance is that each deal is different. Apparently many of these structured finance deals were worked out in bars on the back of cocktail napkins.

Thus, there's no single explanation for how a CDO is created. There are many options, but CDO creation always follows certain basic principles, rooted in Probability Theory. In particular, financial engineers use these techniques to convert low-rated, high-risk securities to high-rated, "low-risk" AAA securities. We'll use some numerical examples to show that's done, The actual "real world" CDOs and other securities will be more complex, and will combine several of these techniques. We'll describe how it's done, and how it went wrong.

On this web site, I try to avoid using math, since it turns off most readers. However, in this article I'm going to give numerical examples that require understanding of some concepts like "present value" of a future payment, and "expected value" of a probabilistic payment. These terms will be explained, but the whole point of this is that you have to work through the numeric examples, step by step, if you want to understand what's going on.

Meanings of ratings on securities

Most investors don't have the time or expertise to determine how risky any given investment is. So they depend on the ratings agencies to tell them how risky or safe a particular investment is.

Many investing organizations have a simple rule: They will not invest in anything but AAA rated securities. The CFO of a company will say, "We manufacture widgets, and we're experts at that. We're not experts at evaluating investment risks. So we invest ONLY in the safest securities, the AAA-rates securities. Period."

So if you're an investment broker and you want sell securities that aren't AAA-rated, then you've got a problem, because a lot of investors won't touch them at any price. The simplest solution is to find a way to turn lower-rated securities into AAA-rated securities, and that's where the structured finance magic comes in, as we'll see.

There are three major ratings agencies -- Standard & Poor's, Moody's Investors Service and Fitch Ratings. The ratings they provide indicate the probability of default within the next year.

The following table gives the S&P ratings, along with the probability of default for each:

          Probability        Probability        Probability
  Rating   of default Rating  of default Rating  of default
  ------------------- ------------------ ------------------
    AAA     0.094%     BBB+    0.603%     CCC+   27.280%
    AA+     0.094%     BBB     0.978%     CCC    29.945%
    AA      0.125%     BBB-    1.482%     CCC-   31.827%
    AA-     0.137%     BB+     3.750%     CC     37.738%
    A+      0.174%     BB      5.000%
    A       0.304%     BB-     7.500%
    A-      0.343%     B+      9.111%
                       B       9.432%
                       B-     12.745%

And so, for example, if you purchase a BB bond that will pay you $1000 at maturity in a year, then there's a 5% chance that you won't receive that $1000, and a 95% chance that you will.

Computing present value of a future payment

If you're going to receive $1000 a year from now, how much is that $1000 worth today?

That depends on the market interest rate. For simplicity, we'll assume throughout this article that the market interest rate is 6%.

So, if I deposit $50 in a bank that pays 6% interest per year, then at the end of a year I'll have $50*(1+6%) = $50*(1.06) = $53.

Now, turn the computation upside down. If I'm going to receive $1000 a year from now, then the "present value" of that $1000 is $1000/(1+6%) = $1000/(1.06) = $943.40.

That's a "present value" computation for future payment.

Computing expected value of an uncertain payment

Suppose that the year is up, and I now have a bond that's going to pay me $1000 today, but it's not certain -- but there is a 5% probability of default. What's the value of that bond?

There's a 95% probability that I'll receive $1000 today, and a 5% probability that I'll receive nothing. The "expected value" is: ($1000*95% + $0*5%) = $950.

I know that this seems strange; after all, how can $950 be the "expected value," when you won't receive $950 under any circumstances: you'll receive either $0 or $1000, but never $950.

The answer is that "expected value" is a mathematical term from the Theory of Probability. Imagine that you have an infinite number of these bonds, all being paid today. As you redeem one bond after another, some paying $0 and some paying $1000, what's the AVERAGE amount that will be paid per bond? The average is $950, the expected value.

Combining present value and expected value

Now let's assume that I have an IOU that will pay $1000 in a year, with a 5% probability of defaulting. If I wanted to sell that IOU to someone else, what's a fair price for the IOU today?

Here we have a payment in the future, and a payment that's uncertain. So we have to combine present value and expected value computations.

Contents - This page
Meanings of ratings on securities
Computing present value of a future payment
Computing expected value of an uncertain payment
Combining present value and expected value
How to create a CDO
The Making of a Mortgage CDO
How the "cascade rule" works
Structured Investment Vehicles (SIVs)
Insuring bonds to raise their ratings
Credit Default Swaps (CDSs) and Counterparty Risk
The generational problem

Well, there's a 5% probability of default, and a 95% probability that $1000 will be paid, then the IOU is worth its expected value a year from now, which is $1000*95% = $950 a year from now.

The present value of that $950 is $950/1.06 = $896.22.

So, if I want to sell the IOU to someone, a fair price would be the present value of the expected value, or $896.22. If I wanted to make a commission, then I'd sell it for, say, $925, and earn essentially a commission of ($925-$896.22) = $28.78.

How to create a CDO

I hesitate to post this example, because some people may find it confusing. But a web site reader has encouraged me to do so, and so here it is.

If you want to understand how to create a collateralized debt obligation (CD0), then this example tells you how to do it. In actual practice, where there are many different ratings levels (tranches), the computations are a lot more complex, but the basics are contained in this simple example.

You have to know a little bit about computing probabilities to understand this example, but if you work it through to the end, I think you'll understand what happened:

All the steps in the above example are used in the creation of "real life" CDOs. The only difference is that "real life" CDOs are much more complicated because:

But whatever the complexity of the "real world" CDO, it's based on exactly the same principles as illustrated by the above example, using the same kinds of computations for "present value" and "expected value."

The Making of a Mortgage CDO

A December 27 page one article in the Wall Street Journal described the steps of how a particular CDO, a Merrill Lynch product called the "Norma CDO," was made. The online version of the article was accompanied by a flash graphic that shows interactively how it worked. Although the article requires a subscription, you can see the flash graphic without a subscription by clicking here.

The flash graphic doesn't give too much explanation, and so the following should make it easier to understand. The graphics are screen shots from the flash graphic, which you should definitely look at for yourself.

Making a CDO - Step 1


Making a CDO - Step 1
Making a CDO - Step 1

The individual mortgages are not the X's and Y's in the example above -- those come in the next step. These are the individual mortgages that are sliced and diced to get the X's and Y's.

Several thousand loans go into a single pool, labeled "RBMS trust" in the adjoining diagram. In order to provide "diversity," different kinds of loans from all over the country are combined into this pool.

That way, the investors are protected, since risk is spread around. These assumptions made sense in earlier decades, but in the last decade they were defeated for generational reasons, as we'll explain below.

There's an important correction to this diagram: It isn't just "subprime mortgages" that go into the RMBS trust; it's all kinds of mortgages, many of which are liar loans -- approved for homeowners with no income, no assets, no jobs, and no hope of making the payments.

Making a CDO - Step 2


Making a CDO - Step 2
Making a CDO - Step 2

The RMBS Trust is "securitized" -- sliced and diced into individual securities called "Residential Mortgage Back Securities," or RMBS. These securities are the X's and Y's that will form the CDO.

Contents - This page
Meanings of ratings on securities
Computing present value of a future payment
Computing expected value of an uncertain payment
Combining present value and expected value
How to create a CDO
The Making of a Mortgage CDO
How the "cascade rule" works
Structured Investment Vehicles (SIVs)
Insuring bonds to raise their ratings
Credit Default Swaps (CDSs) and Counterparty Risk
The generational problem

In our example above, the X's and Y's had equal risk, both B-rated. In real world examples, the original mortgage loans that went into the RMBS Trust had various levels of risk, so when they're sliced and diced into RMBS securities, those securities have multiple levels of risk as well, and so have different ratings. These different levels are called "tranches." The AAA-rated securities are low-risk tranches, and the low-rated securities are high-risk tranches.

Just as the X's and Y's could be sold as is, the RMBS bonds could be sold as is. Fair prices and interest rates could be computed for each rating level, and bonds at each level could be sold. However, in that case, there would be very few AAA-rated securities.

Therefore, a "cascade rule" is set up. All the income for all the bonds goes into a pool, and the highest-rated bonds get paid off first. As more money comes in, the lower-rated bonds get paid off as well. If enough money comes in, then everyone gets paid, as we'll illustrate later.

Making a CDO - Step 3


Making a CDO - Step 3
Making a CDO - Step 3

The low-rated bonds in the RMBS pool can't easily be sold because they're too risky, so the trick is to get them an AAA rating.

The low-rated bonds are moved over into a new pool called a collateralized debt obligation (CDO).

Making a CDO - Step 4


Making a CDO - Step 4
Making a CDO - Step 4

Although all these bonds were low-risk, they can still be sorted by risk within the low risk category. Then a "cascade rule" is put into effect for the CDO, just as it was for the RMBS, so that income is first paid to the highest rated bonds, and additional income is paid to the lower-rated bonds.

This CDO itself contains lower-rated securities, and those can be passed off to a new CDO, creating a "CDO-squared." There's no limit to the ingenuity that financial engineers can show, in order to collect fat commissions while screwing the investor.

Making a CDO - Step 5


Making a CDO - Step 5
Making a CDO - Step 5

Income to the CDO goes to the high-rated bonds first, and liabilities are assigned to low-rated bonds first. That way, the high-rated bonds are more likely to be paid, while the low-rated bonds are more likely to default.

Making a CDO - Step 6


Making a CDO - Step 6
Making a CDO - Step 6

When the CDO was created, most of the securities were AAA-rated.

When the "credit crunch" began in August, 2007, ratings agencies were forced to reexamine their ratings of CDO securities, and hundreds of billions of dollars worth have already had their ratings lowered several notches, making many of them almost worthless.

How the "cascade rule" works

We've referenced this "cascade rule" several times in the explanations above. This is crucial to the workings of CDOs.

Fortunately, Porfolio.com has put together a flash graphic that illustrates how income cascades from one tranche level to the next. It's really a VERY dramatic graphic, and you have to see it for yourself, which you can do by clicking here.

The flash graphic doesn't give too much explanation, and so the following should make it easier to understand:

Cascade Rule - Full Flow #1


Cascade Rule - Full Flow #1
Cascade Rule - Full Flow #1

Relating this to the previous set of graphics, the rows of buckets on the left portion of this graphic represent the different tranches of the RMBS, while the buckets on the right portion represent the different tranches of the CDO.

As income comes into the RMBS (where income is represented by the blue liquid filling up the buckets), the high-level tranches get paid first.

Cascade Rule - Full Flow #2


Cascade Rule - Full Flow #2
Cascade Rule - Full Flow #2

As more income comes in, the lower-level rows of buckets get paid. The bottom row of buckets corresponds to the low-rated RMBS bonds that were assigned to the CDO. Therefore, all the blue liquid that reaches these buckets go into that big tray on the bottom - which represents income to the CDO.

Cascade Rule - Full Flow #3


Cascade Rule - Full Flow #3
Cascade Rule - Full Flow #3

The income to the CDO (the blue liquid in the big tray) is then used to pay the top-level tranches of the CDO first.

Cascade Rule - Full Flow #4


Cascade Rule - Full Flow #4
Cascade Rule - Full Flow #4

As more and more income (blue liquid) is paid to the CDO, all the tranches of the CDO get paid. This is the fantasy scenario, when virtually no mortgages default.

Cascade Rule - Partial Flow


Cascade Rule - Partial Flow
Cascade Rule - Partial Flow

Things start to go wrong when mortgages begin to default. In this diagram, defaulting mortgages are represented by red circles below some of the houses at the top of the diagram.

When there are only a few defaults, then not all the RMBS buckets get filled at the lower levels. Therefore, less income gets paid to the CDO (less blue liquid pours into the big tray at the bottom).

As a result, the upper tranches of the CDO get paid, but the lower tranches of the CDO don't get paid.

Cascade Rule - Severe Dehydration


Cascade Rule - Severe Dehydration
Cascade Rule - Severe Dehydration

In this diagram, there are lots of red circles, indicating lots of defaulting mortgages.

Some of the medium level tranches of the RMBS don't get paid.

But even worse, no income at all reaches the CDO, and so the CDO securities are completely worthless.

This is what we're seeing a great deal of these days. Remember that the top levels of the CDO have AAA ratings, and payment is supposed to be certain. Everyone from corporations to city governments felt safe investing in these CDOs because of the AAA ratings, and now they're losing everything.

Structured Investment Vehicles (SIVs)


Volkswagen love bus from the 1960s <font face=Arial size=-2>(Source: worldcarfans.com)</font>
Volkswagen love bus from the 1960s (Source: worldcarfans.com)

For some reason, ever since I first heard about Structured Investment Vehicles (SIVs), the thought that's popped into my mind was a 1960s style Volkswagen love bus, covered with graffiti.

In fact, the comparison may be unfair to the love bus, because SIVs are less reliable.

An SIV is simply a separate corporation set up by an investment bank to manage CDOs. The SIV gets money from investors, the SIV uses the money to purchase the CDO from the investment bank, and the income to the CDO is then used to pay off investors. Since the investment bank no longer has any interest in the CDO, the investment bank is protected if the CDO fails. (Incidentally, the same people who run the investment bank also run the SIV, so they continue to collect fat commissions until the CDO fails -- and even sometimes do so after the CDO fails.)

In the previous section, where I discussed how the "cascade rule" works for CDOs, it was apparent that things could go wrong, and CDOs could become completely worthless. That's what actually happened to many CDOs. When you read in the news that "Citibank is bringing these CDOs back onto their balance sheet," it means that the SIV failed, and Citibank has been forced by public pressure to take responsibility for what it's done.

Insuring bonds to raise their ratings

The instability of bond insurance is a growing danger to the world financial system today. Before going into the use of credit default swaps (CDSs), let's do the arithmetic of insurance.

Contents - This page
Meanings of ratings on securities
Computing present value of a future payment
Computing expected value of an uncertain payment
Combining present value and expected value
How to create a CDO
The Making of a Mortgage CDO
How the "cascade rule" works
Structured Investment Vehicles (SIVs)
Insuring bonds to raise their ratings
Credit Default Swaps (CDSs) and Counterparty Risk
The generational problem

The three major bond insurers are ACA Capital Holdings Inc., MBIA Inc and Ambac Financial Group, As of this writing, all three appear close to collapse, and a lot of people are scrambling for a way to bail them out. Whether any bailout will succeed remains to be seen.

The idea behind bond insurance is that if you want to sell a low-rated security, you insure it against default with a bond insurance agency. The investor in the security is thus "doubly protected" -- he can expect to receive payment either from the bond or, if the bond defaults, from the insurance agency.

Presumably, the insurance agency itself has to have an AAA rating if it is to confer an AAA rating on a security that it insures.

In fact, that isn't quite true. ACA has never been more than A-rated, although both Ambac and MBIA have AAA ratings. All three agencies' ratings are in doubt in the current growing crisis.

But financial engineers haven't run out of magic yet.

Let's see how an A-rated agency like ACA can magically confer an AAA rating on a low-rated security.

In fact, an A rated agency can get the same result with even a CCC rated bond. The probability of default of such a bond, when insured, would be 0.304%*29.945% = 0.091%, which is just barely enough to get an AAA rating.

Thus, even though ACA Capital Holdings itself had only an A rating, it had a considerable amount of power to confer AAA ratings on low-rating bonds. Sellers of low-rated bonds will be willing to pay fat fees to an insurance agency to confer the magic of an AAA rating on their low-rated securities, and that's what happened, until it all started falling apart in the last few weeks.

Agencies like Ambac and MBIA, which have AAA ratings themselves, can confer an AAA rating to ANY security, no matter how low the ratings. This gives them an almost unmeasurable amount of power -- as long as they don't have to start paying off on all those defaults.

Credit Default Swaps (CDSs) and Counterparty Risk

If you're a homeowner and you want to insure your home, you purchase a homeowner's insurance policy from an insurance company.

If you're an investment banker and you want to insure your latest and greatest CDO security, you purchase an insurance policy called a "credit default swap", or CDS, from a bond insurance company ... or anyone else who'll sell one to you.

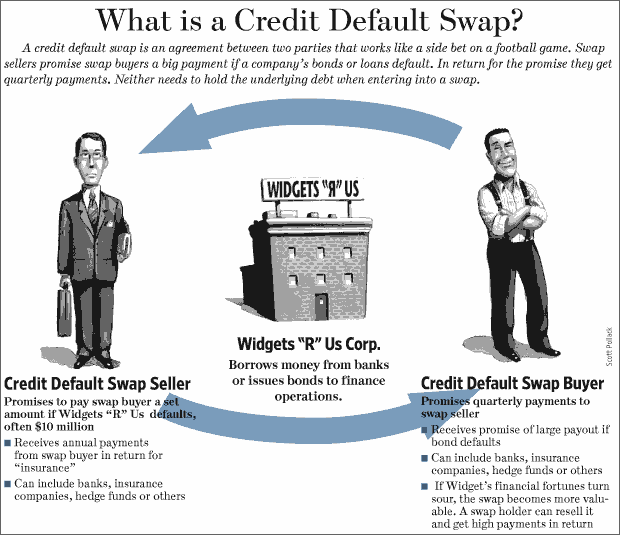

Here's a graphic explaining the CDS, from a a recent Wall Street Journal article on CDSs:


How a CDS works <font face=Arial size=-2>(Source: WSJ)</font>
How a CDS works (Source: WSJ)

This graphic makes several points that contrast an "ordinary" insurance policy and a CDS:

As with everything else in structured finance, credit default swaps have been enormously abused. If you're a bond insurer or a hedge fund, you can make huge amounts of money by selling CDSs, demanding large fees in return for conferring the magic of an AAA rating. The problem arises when defaults start occurring, and the insurance policies have to be paid off.

Right now, all three of the major bond insurers, ACA, Ambac and MBIA, are being forced to reexamine their entire portfolios -- and quickly, or they'll face bankruptcy.

However, it's doubtful that they can succeed. Here's the experience of Warren Buffett, according to an article in the Wall Street Journal:

"With no central trade processing of credit-default swaps, defining trading-partner risks can be a Herculean task. Mr. Buffett learned the difficulty of unraveling such complex instruments in 2002 when he directed General Re Corp., a reinsurer that had been acquired by his Berkshire Hathaway Inc., to pull back from the business of these swaps and other derivatives. It took General Re four years to whittle the business from 23,218 contracts to 197 by the end of 2006.

Doing so involved tracking down hundreds of counterparties to General Re's trades, many of which Mr. Buffett and his colleagues had never heard of, he says, including a bank in Finland and a small loan company in Japan, to name just two. One contract, Mr. Buffett says, was designed to run for 100 years. "We lost over $400 million on contracts that were supposedly" safe and properly priced, "and we did it in a leisurely way in a benign market," Mr. Buffett says. "If we had to unwind it in one month, who knows what would have happened?"

If the experience of General Re carries over to the others, then Ambac, ACA and MBIA don't have a snowflake's chance in hell of surviving.

The generational problem

On this web site, I'm always complaining that journalists, politicians, analysts and pundits interpret everything in terms of race or class, and are completely blind to a generational explanation, no matter how obvious it is.

I've come to the conclusion that even the simplest generational concepts are too abstract for most people to understand. That's why, on this web site, I try to explain generational concepts at the simplest grade school level language. I don't always succeed, but I try.

Contents - This page
Meanings of ratings on securities
Computing present value of a future payment
Computing expected value of an uncertain payment
Combining present value and expected value
How to create a CDO
The Making of a Mortgage CDO
How the "cascade rule" works
Structured Investment Vehicles (SIVs)
Insuring bonds to raise their ratings
Credit Default Swaps (CDSs) and Counterparty Risk
The generational problem

In this case, the generational explanation really is more abstract that it is in other cases, so let's try to take it step by step.

For years now, I've been writing about the fact that mainstream macroeconomics has gotten NOTHING right, at least since 1995. That's because mainstream macroeconomics is obsessed with race, class and income restrictions that often turn out to be meaningless at the macro level. Why did the stock market bubble start in 1995, instead of 1990 or 2000? Mainstream economics is TOTALLY SILENT on that question. The only explanation is the generational explanation -- the bubble began when the survivors of the 1929 crash all disappeared, all at once. Why did the massively abusive use of structured credit begin around 2002? Mainstream economics provides no clue whatsoever. Generational theory has the only explanation, by relating it to the rise in Generation-X to middle management positions in financial firms.

And of course, mainstream economics has absolutely no explanation for what's happening today. Various professors of economics and financial analysts are stumbling around in the dark, making one dumb prediction after another that turns out wrong, often within half an hour. This is the only web site IN THE WORLD that has gotten it right -- not only on the developing financial crisis, but on predictions of social, political and conflict changes around the world, in the Mideast, in Iraq, in Darfur, in Lebanon, in China, and recently in Burma and Kenya.

The predictive success of this web site has been phenomenal since 2003. I've repeatedly challenged everyone to find any journalist, analyst or web site anywhere in the world that comes anywhere close to the predictive success of this web site, and none has been found since none exists.

In 2006, I wrote an article, "System Dynamics and the Failure of Macroeconomics Theory," explaining exactly where mainstream theoretical macroeconomics goes completely wrong, and how it can be fixed. I've written a number of theoretical articles on macroeconomics since then, expanding those ideas and filling in details.

Contents - This page
Meanings of ratings on securities
Computing present value of a future payment
Computing expected value of an uncertain payment
Combining present value and expected value
How to create a CDO
The Making of a Mortgage CDO
How the "cascade rule" works
Structured Investment Vehicles (SIVs)
Insuring bonds to raise their ratings
Credit Default Swaps (CDSs) and Counterparty Risk
The generational problem

If there are any economics or macroeconomists or economics students out there reading this, and if you'd like to start getting things right, instead of just writing things that impress your friend but always turn out wrong, then you MUST start incorporating generational theory into macroeconomic theory. Nothing else works.


Copyright © 2002-2016 by John J. Xenakis.
